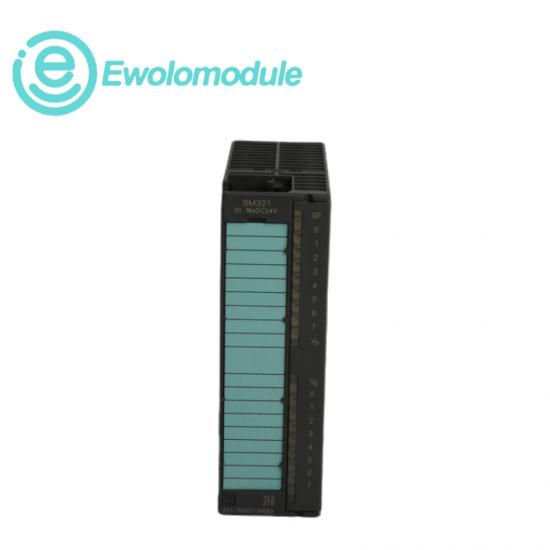

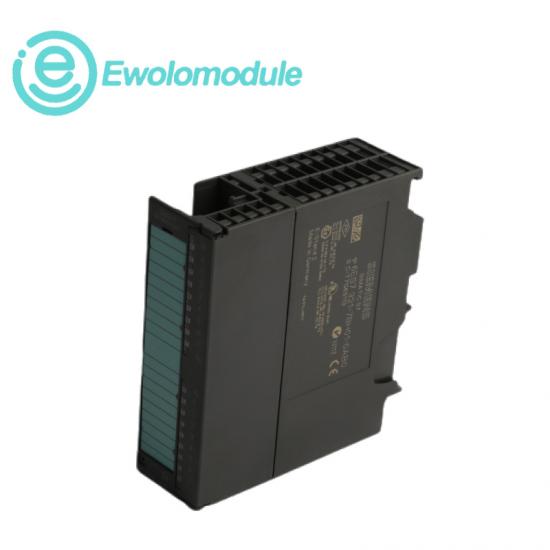

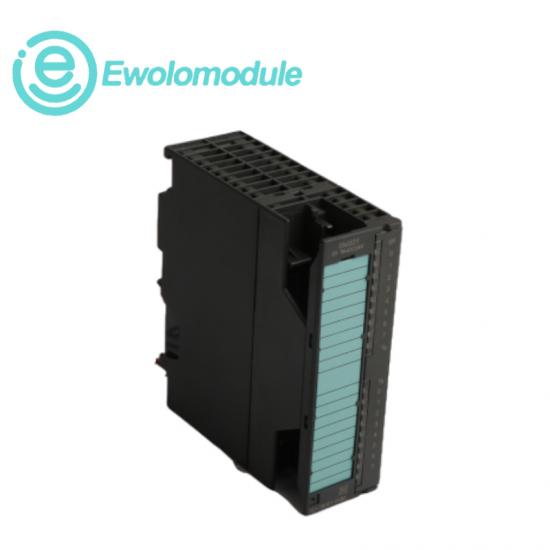

SIEMENS 6ES7321-7BH01-0AB0

Product Type: Digital Input Module

Condition: Brand New & in Stock

Origin: Germany

Service One-stop

Shipping Detail: Fedex and UPS etc

Warranty: 12 months

─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ── ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ─ ─ ● ─ ●

☆ Want to know more details

▸.Input Voltage: 24VDC Rated

▸.Voltage Range: 20.4V (Lower Limit) … 28.8V (Upper Limit)

▸.Input Current (No Load): From L+, Maximum Approx. 90mA

▸.From Backplane Bus: 5V DC Current, Maximum Approx. 130mA

▸.Isolation Structure: Each channel is isolated and isolated from the backplane bus

▸.Input Signal “0” Voltage Range: –30V … +5V

▸.Input Signal “1” Voltage Range: 13V … 30V

▸.Programmable Input Delay: Supports delay settings of 0.1/0.5/3/15/20ms, etc.

▸.Sensor Power Output: 2 outputs, each with a rated output current of 120mA (allowable range 0…150mA); electronically protected against short circuits.

▸.Power Consumption: Typical approx. 4W

☆ Introduction à la

Siemens Série SIMATIC ET 200S

SIMATIC ET 200S est un système d'E/S décentralisées modulaire qui offre une connectivité flexible à une variété de contrôleurs et de bus de terrain. Prenant en charge des protocoles de communication industrielle tels que PROFIBUS DP et PROFINET IO, le système peut être installé directement dans l'armoire de commande ou au niveau du terrain, permettant une acquisition flexible des signaux distribués et un contrôle de sortie.

La structure modulaire, composée de une unité de base, un module électronique et un connecteur frontal, permet aux utilisateurs d'étendre ou de remplacer librement les modules fonctionnels selon les besoins du site, réduisant considérablement les coûts de maintenance et améliorant la fiabilité du système.

─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ── ● ─ ● ─ ● ─ ─ ● ─ ● ─ ● ─ ─ ● ─ ● ─ ●─ ─ ●  ─ ●
